Operation Theatre (OT) Equipments
Buy Now

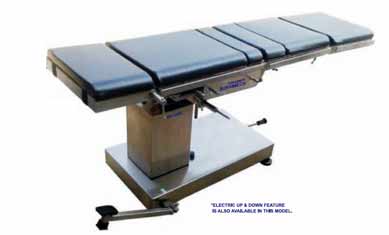

Dynamic Electro Table SDT 1950 H
C – Arm Compatible operating table is fully manually operated for all kind of surgical operations and treatments (Orthopedics, Cardio, Neuro and Endoscopy) Characterized with ergonomy and aesthetic design. It is hydraulic operated in elevation and gear – mechanism operated in all types of different positions during surgical procedures.
Features
- Hydraulic and Mechanical Operated
- Ecentric Pillar, Stainless Stell Fitting
- The base is eccentric for trouble – free C – ARM Movement
- Leg & Head section are interchangeable
- Detachable head and leg section
- Inbuilt kidney bridge
- Base and cover made of attractive & easy to clean stainless steel
Technical Parameters
| Table Length | 1950 mm |
| Width | 525 mm |
| Minimum Height | 750 mm |
| Maximum Height | 1050 mm |
| Kidney Elevator | 120 mm |
| Lateral Tilt | +20° / - 20° |
| Trendelenburg | +25° / - 25° |
| Back Section | +90° / - 40° |
| Head & Leg Section | +90° / - 80° |
| Load Capacity | 200Kg |

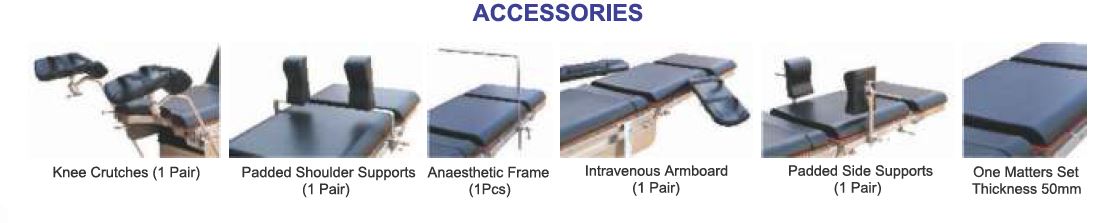

Optional Accessories
- Pelvic Rest
- Pelvic Support (Radiolucent)
- Inner High Support
- Thigh Support
- 1 Pair Leather Shoes
- Tibia Attachment
- Hand Surgery Table (Radiolucent)
- Hand Traction Device
- Steinman Pin Holding Clamp
- Special Head Rest for Shoulder Surgery
Optional Accessories (Orthopaedic Attachment)
