Operation Theatre (OT) Equipments
Buy Now

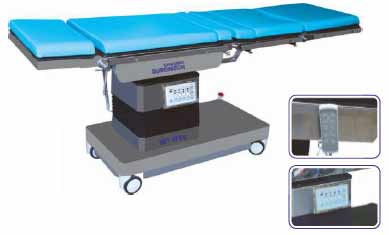

Dynamic Electro Table SDT 1950
Perfect Functionality and Versatility
The ADVANCE ELECTRO TABLE offers effective solutions for the Widest variety of requirements in the OT patients benefit from superb positioning conform and easily Accessed with corded handset.
Universal Design
Developed with numerous new safety features, the new table is straightforward to use in all surgical disciplines. A wide range of patient positions makes this operating table universal – Maximum Performance with Minimum Investment.
Features
- SS – 304
- Surgeons Panel
- Electric (Remote Operated)
- C Arm Compatible
- Zero Positioning
- Casters lockable with single action break
- Handset is providing Dual Memory Function which can be set and reset.
Technical Parameters
| Table Length | 1950 mm |
| Width | 525 mm |
| Minimum Height | 750 mm |
| Maximum Height | 1050 mm |
| Kidney Elevator | 120 mm |
| Lateral Tilt | +20° / - 20° (see in PDF) |
| Trendelenburg | +25° / - 25° (see in PDF) |
| Back Section | +90° / - 40° |
| Head & Leg Section | +90° / - 80° |
| Load Capacity | 250Kg |
| Battery Backup | 2 -3 Hours (Optional) |
| Main Voltage | AC 220V ± 10% 50 Hz |
