ORTHOPAEDIC EQUIPMENTS
SPINE RF
Technical Specification
| Radiofrequency Electrosurgical Unit | ___ |
| Mode | Bipolar |
| Output Voltage | Variable from 500 to 600 ± 20% |
| Output Power | 0 ~ 100W |
| Output Frequency | Bipolar Mode – 1.71 MHZ |
RF Ablation Bipolar Electrode (Spine)
- For RFS Unit Bipolar Electrode for Endoscope, Spine Surgery
Lumbar Vertabra
- φ2.5mm, 360mm working length. Disposable, 4.0/2.5 mm Interface, EO Sterilization
Cervical Vertebral
- φ 1.8 mm, 250mm working. Disposable, 4.0/2.5 mm, EO Sterilization
Technical Parameters

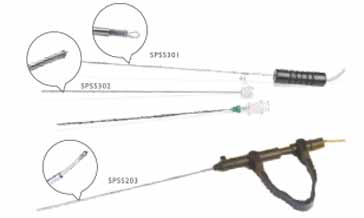

| Model No. | Probe Shape | Working Length | Probe OD | Guide Pin OD | Usage |
|---|---|---|---|---|---|
| SPSS 301 | Annular, Flat (Platinum) | 76mm | 0.92mm | 1.12mm | Treat Herniation of Cervical disc via Percutaneous Puncture |
| SPSS 211 | Annular, Flat | 360mm | 2.5mm | ___ | Treat herniation & Nerve block under Endoscope |
| SPSS 302 | Cone 5" | 219mm | 1.1mm | 1.5mm | Treat protrusion of lumbar intervertebral disc via percutaneous puncture |
| SPSS 203 | Hemispherical Probe 0-30" | 360mm | 2.3mm | 3.7mm | Ablation, hermostasis with TESSYS |
| SPSS 211 | Spherical Probe 0-60" | 360mm | 2.5mm | ______ | Ablation, resection and hemostatis with TESSYS |
